سرور HPE ProLiant DL345 Gen11 یک راه حل 2U 1P مقیاس پذیر است که عملکرد محاسباتی استثنایی و گزینه های ذخیره سازی با ظرفیت بالا را در 1P Economics ارائه می دهد.
این سرور مجهز به پردازنده های نسل چهارم AMD EPYC با حداکثر 96 هسته است، افزایش پهنای باند حافظه (تا 3 ترابایت)، سرعت بالای PCIe Gen5 I/O و حافظه EDSFF2، حداکثر تا 20 LFF و 30 SFF و حداکثر چهار پردازنده گرافیکی در جلو، از قابلیت های اصلی این سرور است که مناسب بارهای کاری فشرده سازمان شماست.
سرور HPE ProLiant DL345 Gen11 عملکرد ذخیره سازی و گزینه های قابل توجهی را برای بارهای کاری فشرده داده مانند ذخیره سازی تعریف شده توسط نرم افزار، رمزگذاری ویدئو و برنامه های مجازی ارائه می دهد.
نمای جلو - سرور HPE ProLiant DL345 Gen11 همراه با 24 SFF
1- Quick removal access panel
2- Health LED
3- Power On/Standby button and system power LED
4- iLO service port
5- NIC status LED
6- USB 3.2 Gen1 Port
7- Unit ID button/ LED
8- Box 3 - 8 SFF Drive Cage Bay
9- Box 2 - 8 SFF Drive Cage Bay
10- Box 1 - 8 SFF Drive Cage Bay
11- Serial number pull tab

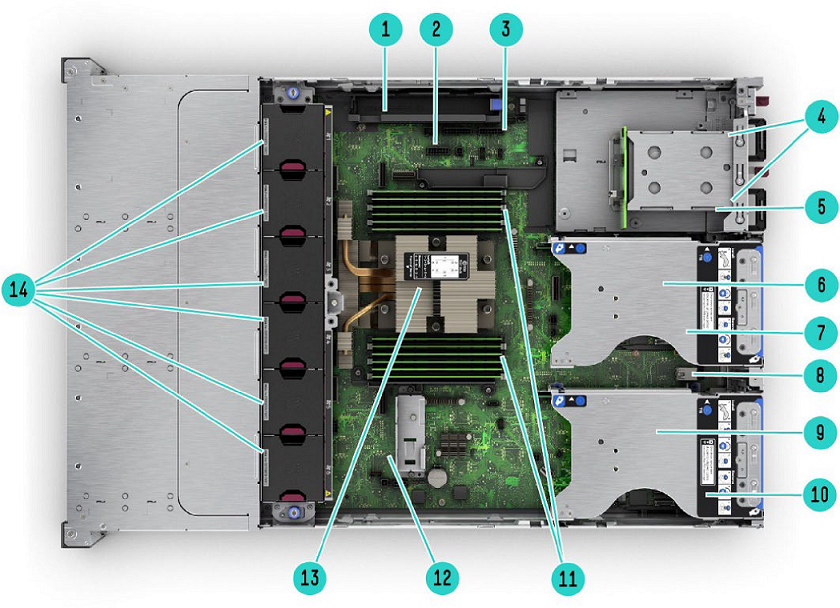

نمای داخلی سرور HPE ProLiant DL325 Gen11 همراه با 2 SFF در پنل پشتی
1- Megacell Battery holder
2- Hard drive backplane power connectors
3- Chassis intrusion detection connector
4- Up to 2 Hot Plug redundant HPE Flexible Slot Power supplies (Under)
5- Rear 2 SFF Cage Bay ( Optional)
6- Secondary PCIe 5.0 risers, slot 4,5,6
7- OCP 3.0 Slot 22 (Under)
8- Internal Dual USB 3.2 Gen1 port
9- Primary PCIe 5.0 risers, slot 1,2,3
10- OCP 3.0 Slot 21 (Under)
11- DDR5 DIMM slots
12- FHFL PCIe card holder
13- Up to 1 Processor shown with standard heat sink
14- Hot plug fans

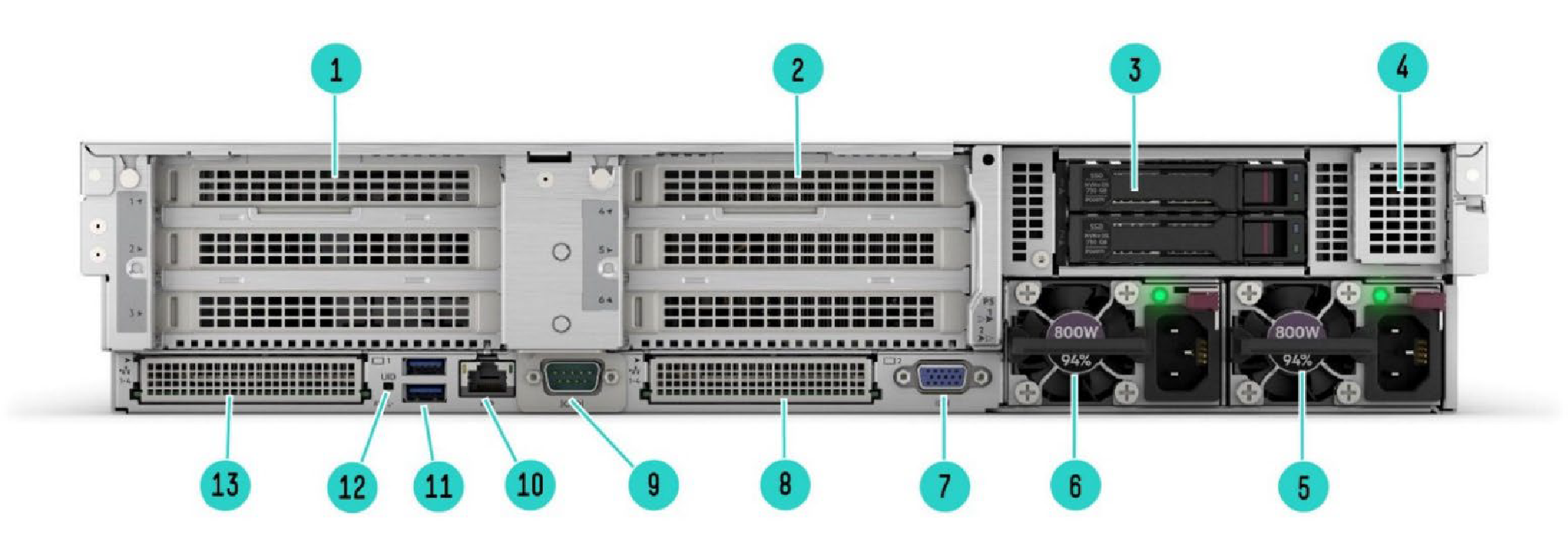

نمای پشتی سرور HPE ProLiant DL325 Gen11 همراه با 2 SFF
1- Primary PCIe 5.0 Riser
2- Secondary PCIe 5.0 Riser
3- Optional Rear Drive Cage (2SFF SAS/SATA/NVMe)
4- Optional NS204i-u hot-plug NVMe boot device
5- Hot-plug Power Supply 1
6- Hot-plug Power Supply 2 (Optional)
7- Video (VGA) port
8- OCP 3.0 slot 22
9- Optional Serial port
10- Dedicated iLO management port
11- 2 USB 3.2 Gen1 port
12- Unit ID LED
13- OCP 3.0 slot 21
مشخصات فنی سرور HPE ProLiant DL345 Gen11
نوع پردازنده | AMD |
گروه پردازنده | 4th Generation AMD EPYC Processors |
تعداد هسته پردازنده | Up to 96, depending on processor |
حافظه پنهان پردازنده | Up to 384 MB L3 cache, depending on processor model |
حداکثر حافظه | 3.0 TB with 256 GB DDR5 |
تعداد اسلات حافظه | 12 |
نوع حافظه | HPE DDR5 SmartMemory |
ویژگی های حفاظت از حافظه | ECC |
درایوهای پشتیبانی کننده | 8 or 12 LFF SAS/SATA with 4 LFF mid drives and 4 LFF rear drives optional. 8 or 16 or 24 SFF SAS/SATA/NVMe with 8 SFF mid drives and 2 SFF rear drives optional. 36 EDSFF NVMe |
مدیریت زیرساخت | HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download), HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, and HPE OneView Advanced (require licenses), HPE GreenLake for Compute Ops Management (subscription included) |
ویژگی های فن سیستم | 6 fans included |
نوع منبع تغذیه | 2 Flexible Slot power supplies maximum, depending on model |
تعداد اسلات های قابل توسعه | 8 maximum, for detailed descriptions refer to the QuickSpecs |
کنترلر شبکه | Optional OCP and/or optional PCIe Network adapters, depending on model |
کنترل کننده ذخیره سازی | HPE Smart Array SAS/SATA Controllers or Tri-Mode controllers, refer to the QuickSpecs for more details |
سرعت پردازنده | 4.0 GHz maximum, depending on processor |
