سرور HPE ProLiant DL380 Gen11 یک انتخاب عالی برای بارهای کاری فشرده مانند ذخیره سازی نرم افزاری، رمزگذاری ویدیو، و برنامه های مجازی شده است که به ظرفیت ذخیره سازی زیاد، و پهنای باند ورودی/خروجی و حافظه بالا نیاز دارند.
سرور HPE ProLiant DL380 Gen11 LFF یک سرور دو یونیتی است که با بهره گیری از دو پردازنده می تواند عملکرد محاسباتی متراکم را برای حجم های کاری بالا به صورت اقتصادی ارائه دهد.
سرور HPE ProLiant DL380 Gen11 LFF دارای پردازندههای نسل چهارم Intel Xeon با حداکثر 60 هسته است و با پهنای باند حافظه افزایشیافته و درگاه PCIe نسل پنجم، می تواند سرعت بالایی را در اختیار کاربران قرار دهد.
سرور HPE ProLiant DL380 Gen11 LFF یک انتخاب عالی برای بارهای کاری فشرده مانند ذخیره سازی نرم افزاری، رمزگذاری ویدیو، و برنامه های مجازی شده است که به ظرفیت ذخیره سازی زیاد، و پهنای باند ورودی/خروجی و حافظه بالا نیاز دارند.
سرور HPE DL380 Gen11 LFF دارای قابلیت پشتیبانی از 16 LFF (درایوهای 3.5 اینچی) است که 12 عدد از آن در قسمت جلوی سرور قرار دارد.

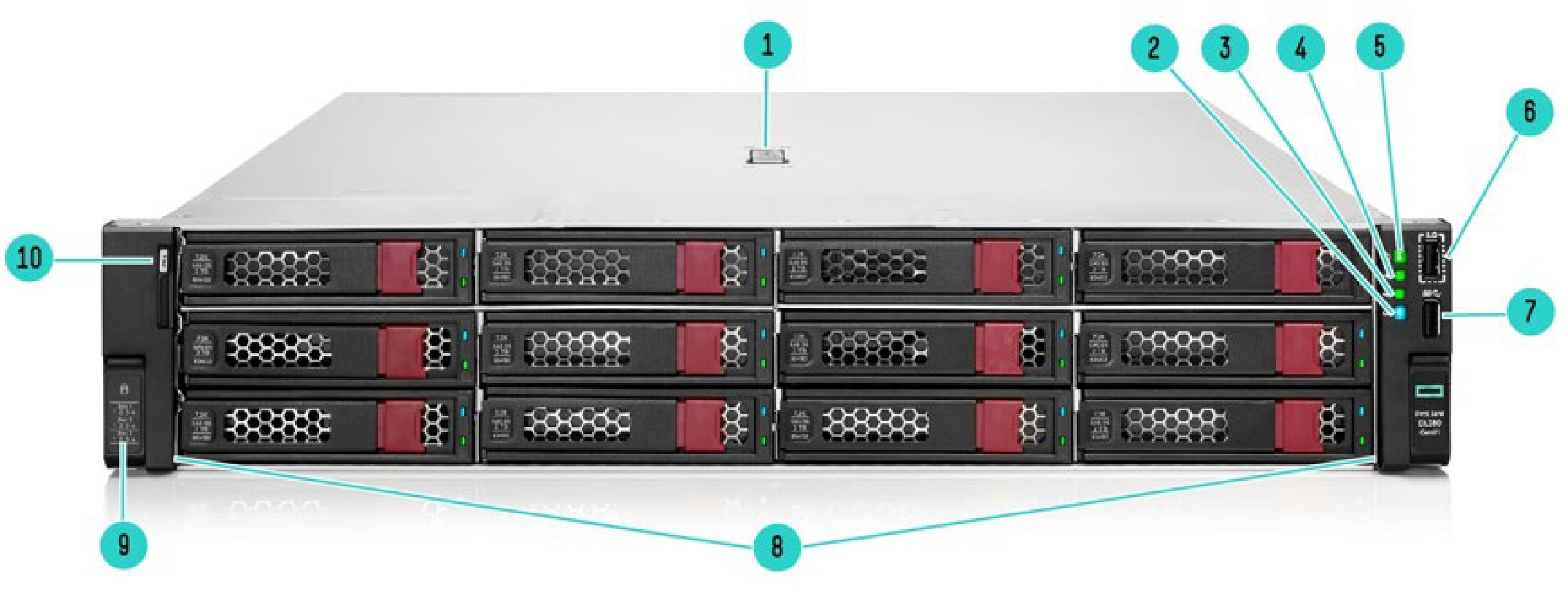

نمای جلو - سرور HPE ProLiant DL380 Gen11 به همراه 12 LFF
1- Quick removal access panel
2- UID Button / LED
3- NIC Status
4- Health LED
5- Power On / Standby button and LED
6- iLO Service Port
7- USB 3.0
8- 12 x LFF Media
9- Drive support label
10- Serial Number Label Pull Tab Page 2
نمای داخلی سرور HPE ProLiant DL380 Gen11
1- Hot Plug Fans
2- Processors, heatsinks showing
3- Optional NS204i-U Boot Device
4- Hot Plug redundant HPE Flexible Slot Power Supplies
5- Secondary Riser (Optional) (Requires second processor)
6- Primary Riser
7- DDR5 DIMM slots, shown fully populated in 32 slots
8- Drive Backplanes
9- Drive Cages
نمای پشتی سرور HPE ProLiant DL380 Gen11
1- Primary Riser. PCIe 5.0 Slots (Slots 1-3)
2- OCP 3.0 Slots, shown covered
3- Secondary Riser. PCIe 5.0 Slots (Slots 4-6)
4- Tertiary Riser (Slots 7-8) shown with optional 2SFF drive cage installed
5- Optional NS204i-u Boot Device
6- Power Supply 1 and 2
7- VGA Connector
8- Optional Serial Port
9- Dedicated iLO Management Port
10- USB 3.0 Connectors (2)
11- UID Indicator LED
Memory
HPE DDR5 Smart Memory, Registered (RDIMM) |
Type |
32 16 DIMM slots per processor, 8channels per processor, 2 DIMMs per channel |
DIMM Slots Available |
8.0 TB 32 x 256 GB RDIMM @ 4800 MT/s (32 DIMMs only with 8SFF or 16SFF, 16 DIMMs maximum with 24SFF) |
Maximum capacity |
Maximum Internal Storage
12+4+2x 18 TB (with optional rear LFF drive cage) | 324 TB | Hot Plug LFF SAS HDD |
12+4+2 x 18 TB (with optional rear LFF drive cage) | 324 TB | Hot Plug LFF SATA HDD |
مشخصات فنی سرور HPE ProLiant DL380 Gen11
نوع پردازنده | Intel |
گروه پردازنده | 4th Generation Intel Xeon Scalable Processors |
تعداد هسته پردازنده | 8 to 60 core, depending on processor |
حافظه پنهان پردازنده | 22.5 MB to 112.5 MB L3, depending on processor |
حداکثر حافظه | 8 TB with 256 GB DDR5 |
تعداد اسلات حافظه | 32 |
نوع حافظه | HPE DDR5 SmartMemory |
ویژگی های حفاظت از حافظه | RAS – Advanced ECC, online spare, mirroring, combined channel (lockstep) functionality, and HPE Fast Fault Tolerant Memory (ADDDC); Intel Optane Persistent Memory |
درایوهای پشتیبانی کننده | 8 or 12 LFF SAS/SATA/SSD 8, 16, or 24 SFF SAS/SATA/SSD, depending on configuration. 6 SFF rear drive optional or or 2 SFF rear-drive optional, 20 SFF NVMe optional, NVMe support via Express Bay will limit maximum drive capacity, depending on model |
مدیریت زیرساخت | HPE iLO Standard with intelligent provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, HPE OneView Advanced (optional, requires licenses), and HPE GreenLake COM. |
ویژگی های فن سیستم | Hot-plug redundant fans, Standard Fan Kit or High Performance Fan Kit, depending on model |
نوع منبع تغذیه | 800W, 1000W, or 1600W Dual hot-plug redundant 1+1 HPE Flexible Slot Power Supplies, depending on model. |
تعداد اسلات های قابل توسعه | Up to 8 PCIe Gen5, and 2 OCP 3.0, for detailed descriptions reference the QuickSpecs |
کنترلر شبکه | 1 Gb, 10 Gb, 10/25 Gb, 100 Gb, or 200 Gb, in PCIe adapter or OCP 3.0 form factor, for detailed descriptions reference the QuickSpecs. |
کنترل کننده ذخیره سازی | HPE SR932i-p and/or HPE MR216i-o and/or HPE MR416i-o and/or HPE MR216i-p and/or HPE MR416i-p and/or HPE MR408i-o, for detailed descriptions reference the QuickSpecs. |
حداکثر سرعت پردازنده | 3.7 GHz maximum, depending on processor |
نوع درایو نوری | Optional DVD-ROM Optional via Universal Media Bay External support only |
امنیت | HPE TPM 2.0 standard on motherboard. Optional locking Bezel Kit, Intrusion Detection Kit |
ظرفیت هر DIMM | 16 GB to 256 GB |
