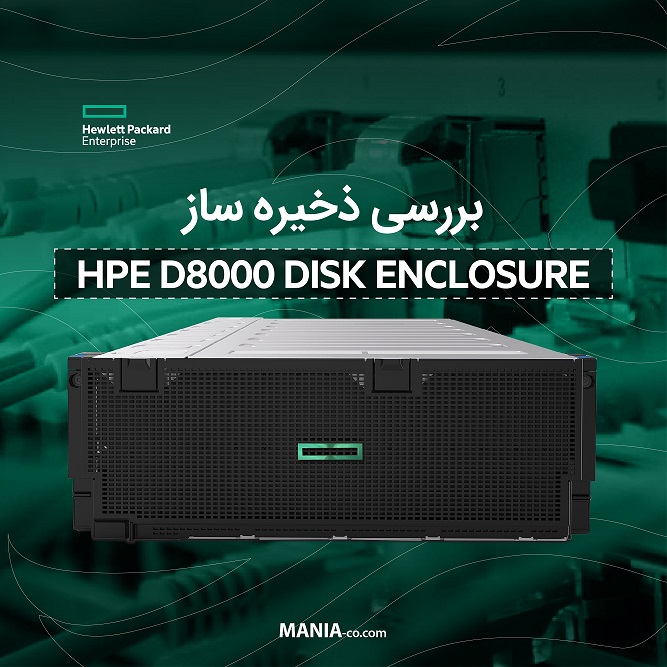

معرفی ذخیره ساز HPE D8000 Disk Enclosure

آیا شما در مجموعه خود نیاز به یک ذخیره ساز (DAS) مقرون به صرفه و متراکم با سرعت انتقال 12Gb/s دارید؟

Hewlett Packard Enterprise ذخیره ساز HPE D8000 را برای سرورهای ProLiant بگونه ای توسعه داده که این دستگاه ترکیبی از سادگی ومقرون به صرفه بودن را بدون کاهش کارایی و انعطاف پذیری ارائه می دهد.HPE D8000 Disk Enclosure با توجه به ویژگی هایش ( مقرون بصرفه و متراکم بودن ) برای محیط هایی طراحی شده که مقدار داده در آن بصورت فشرده می باشد.این Enclosure علاوه بر اینکه بعنوان direct-attached storage یا DAS استفاده می شود کاربرد هایی در زمینه محافظت از داده، پشتیبان گیری ابری و محیط های داده بزرگ(Big Data) دارد.

D8000 Disk Enclosure به وسیله کنترلر های HPE Smart Array E208e-p SR Gen10 و HPE Smart Array P408e-p SR Gen10 می تواند به سرور های ProLiant Gen10 متصل شود که شامل HPE Apollo  و  HPE StoreEasyنیز می شود. با اتصال دو D8000 enclosure می توانیم از 212 درایو پشتیبانی کنیم.

ویژگی های دستگاه :

پپشتیبانی از RAID های :

• RAID 0 (striping) provides no extra data protection.
• RAID 1 (mirroring) protects against failure of one drive.
• RAID 1+0 (mirroring and striping) protects against failure of one drive (and failure of particular multiple drives).
• RAID 5 (distributed data guarding) protects against failure of one drive.
• RAID 6 with ADG (Advanced Data Guarding): This is the highest level of fault tolerance.
• RAID 50 (RAID 5+0) protects against failure of one drive (and failure of particular multiple drives).
• RAID 60 (RAID 6+0) allows administrators to split the RAID 6 storage across multiple external boxes.
• RAID 1 ADM (Advanced Data Mirroring) allows customers to create mirrored RAID set using 3 identical hard drives.

پشتیانی از کنترلر های HPE Smart Array :

HPE Smart Array E208e-p SR Gen10 Controller

• Storage interface (SAS/SATA)
• 8 SAS lanes across 2 x4 external Mini-SAS HD ports
• 12Gb/s SAS, 6Gb/s SATA technology
• Support for SAS tape drives
• PCI Express 3.0 x8 link
• RAID 0, 1, 5, 10
• Mixed Mode (RAID logic drives and HBA physical drives simultaneously)
• Legacy and UEFI boot operation
• UEFI System Utilities (storage configuration)
• Up to 238 physical drives
• Up to 64 logical drives
• HPE Smart Array SR Secure Encryption (optional license)
• HPE SSD Smart Path
• Rapid Parity Initialization (RPI)
• Rapid rebuild
• Drive Sanitize
• Performance Optimization-Degraded Reads and Read Coalescing
• Power efficiency
• Seamless upgrades from HPE Smart Array Software RAID
• Seamless upgrades to HPE Smart Array P-class Controllers

HPE Smart Array P408e-p SR Gen10 Controller

• Storage interface (SAS/SATA)
• 8 SAS lanes across 2 x4 external Mini-SAS HD ports
• 12Gb/s SAS, 6Gb/s SATA technology
• Support for SAS tape drives, SAS tape autoloaders and SAS tape libraries
• 4 GB Flash-Backed Write Cache (FBWC)
• PCI Express 3.0 x8 link
• RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM (Advanced Data Mirroring)
• Mixed Mode (RAID logic drives and HBA physical drives simultaneously)
• Legacy and UEFI boot operation
• UEFI System Utilities (storage configuration)
• Up to 238 physical drives
• Up to 64 logical drives
• HPE Smart Array SR SmartCache (optional license)
• HPE Smart Array SR Secure Encryption (optional license)
• HPE SSD Smart Path
• Rapid Parity Initialization (RPI)
• Rapid rebuild
• Drive Sanitize
• Performance Optimization-Degraded Reads and Read Coalescing
• Power efficiency
• Seamless upgrades from HPE Smart Array S-class and E-class controllers
• FIPS 140-2 Level 1 Implementation Under Test (expected validation complete in 2018)

پپشتیبانی از درایو های :

12G 3.5" SAS Midline (MDL) Hard Disk Drives

HPE 18TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty Helium 512e Digitally Signed Firmware HDD          P37669-K21

HPE 16TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty Helium 512e Digitally Signed Firmware HDD          P23608-K21

HPE 14TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty Helium 512e Digitally Signed Firmware HDD          P09155-K21

HPE 12TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty Helium 512e Digitally Signed Firmware HDD          881781-K21

HPE 10TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty Helium 512e Digitally Signed Firmware HDD          P09149-K21

HPE 6TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty 512e HDD                                                                    861746-K21

6G 3.5" SATA Hard Disk Drives

HPE 18TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty Helium 512e Digitally Signed Firmware HDD          P37678-K21

HPE 16TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty Helium 512e Digitally Signed Firmware HDD          P23449-K21

HPE 14TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty Helium 512e Digitally Signed Firmware HDD          P09165-K21

HPE 12TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty Helium 512e Digitally Signed Firmware HDD          881787-K21

HPE 10TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty Helium 512e Digitally Signed Firmware HDD          P09161-K21

HPE 8TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty 512e Digitally Signed Firmware HDD                         834028-K21

HPE 6TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty 512e HDD                                                                    861742-K21

12G 3.5" SAS Solid State Drives (SSD) in Converter carriers

HPE 960GB SAS 12G Mixed Use LFF LPC Value SAS Multi Vendor SSD                                                             P37009-K21
