آیا به دنبال یک راه حل سرور مقیاس پذیر و بهینه سازی شده برای حجم های کاری محاسباتی مجازی و نرم افزاری خود هستید؟
سرور HPE ProLiant DL320 Gen11 یک راه حل 1U-1P است که عملکرد محاسباتی استثنایی، نرخ انتقال داده با سرعت بالا و افزایش حداکثر ظرفیت حافظه و پهنای باند را در 1P اقتصادی ارائه می دهد. سرور HPE ProLiant DL320 Gen11 مجهز به پردازندههای مقیاسپذیر نسل چهارم Intel® Xeon® با حداکثر 32 هسته و 270 وات است. در این سرور می توان ظرفیت حافظه را (تا 2 ترابایت 4800 MT/s) افزایش داد همینطور از درگاه پرسرعت PCIe Gen5 هم برخوردار است.
سرور HPE ProLiant DL320 Gen11 را می توان یک سرور پر سرعت کم هزینه دانست.
سرور HPE ProLiant DL320 Gen11 یک انتخاب عالی برای بارهای کاری مجازی شده مانند محاسبات تعریف شده با نرم افزار، CDN، VDI و VDI، و برنامه هایی است که نیاز به متعادل کردن پردازنده، حافظه و پهنای باند شبکه دارند.
نمای جلو - سرور HPE ProLiant DL320 Gen11 به همراه 4 LFF
1- Optical Disk Drive (optional - shown)
2- Serial number/iLO information pull tab
3- Quick removal access panel
4- USB 3.2 Gen1 port
5- iLO Service Port
6- Power On / Standby button and LED
7- Health LED
8- NIC Status
9- UID Button/LED
10- Four (4) LFF Drive Cage (shown with drives)
11- Drive support label
نمای جلو - سرور HPE ProLiant DL320 Gen11 به همراه 8 SFF
1- Quick removal access pane
2- Serial number/iLO information pull tab
3- Display Port (optional via Universal Media Bay – shown)
4- Universal Media Bay or 2 SFF Drive Bay (shown with ODD,
Display & USB port)
5- USB 3.2 Gen1 port (optional via Universal Media Bay – shown)
6- Optical disk drive (optional via Universal Media Bay– shown
7- iLO Service Port
8- Power On / Standby button and LED
9- Health LED
10- NIC Status
11- UID Button/LED
12- USB 3.2 Gen1 port
13- 8SFF Drive Cage (shown with drives)
14- Drive support label

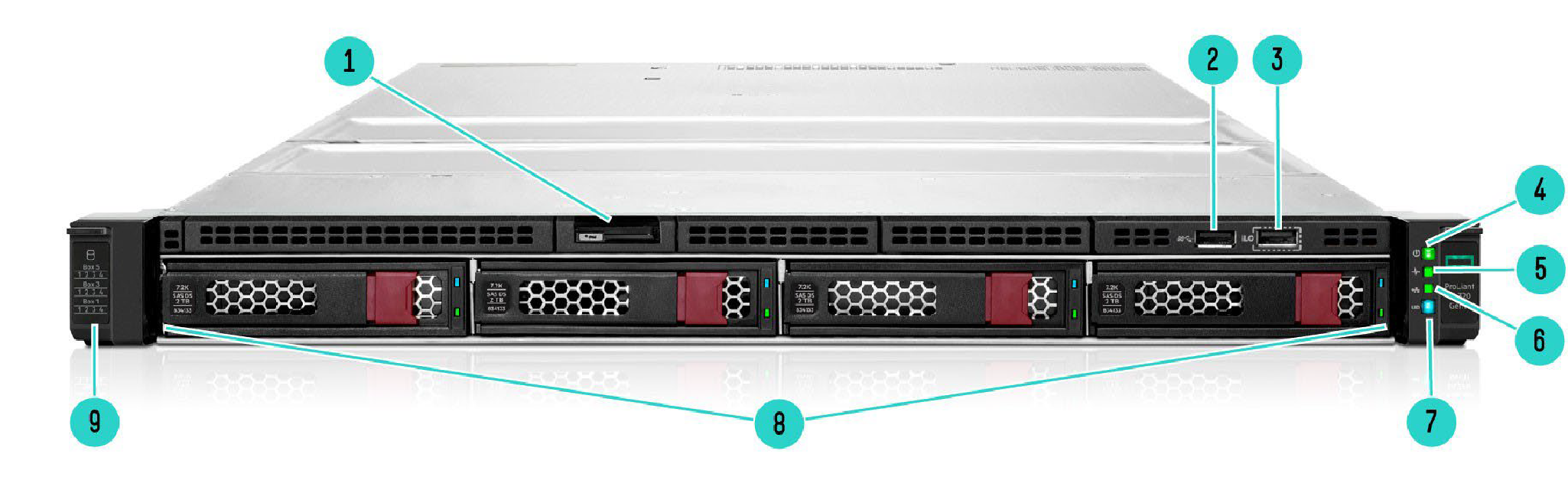

1- Serial number/iLO information pull tab
2- One (1) USB 3.2 Gen1 Port
3- iLO Service Port
4- Power On/Standby button and LED
5- Health LED
6- NIC Status
7- UID Button/LED
8- 12 x LFF Drive Cage (4 Shown populated, 2 rows of 4 behind)
9- Drive support label

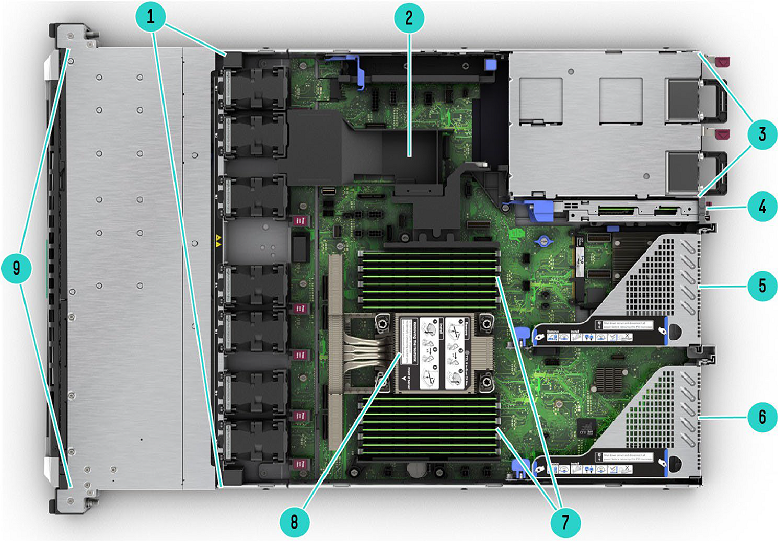

نمای داخلی سرور HPE ProLiant DL320 Gen11 – شاسی 8SFF
1- Up to 7 Hot Plug Fans
2- Two (2) M.2 module connectors (under the air baffle- not
visible)
3- Hot-plug Power Supply 1 and 2
4- NS204i-u Boot Device (optional - shown)
5- Slot-1 PCIe5 x16 FHHL (Primary Riser)
6- Slot-2 PCIe5 x16 FHHL (Secondary Riser)
7- 16 DDR5 DIMM slots (shown)
8- Heat Sink
9- Drive Cage

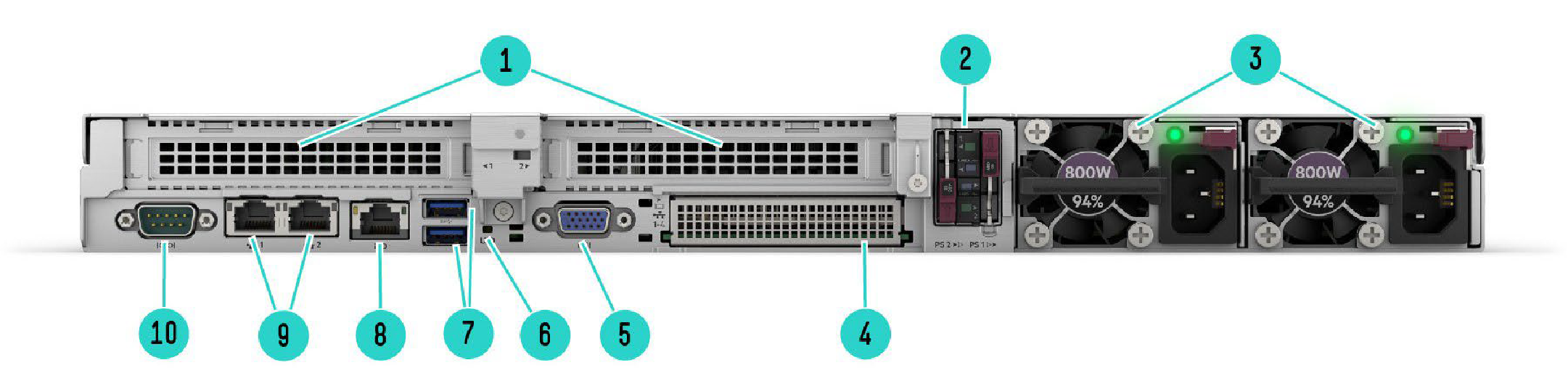

نمای پشتی سرور HPE ProLiant DL320 Gen11
1- Slot-1 & 2 PCIe5 x16 FHHL (Primary and Secondary Riser)
2- NS204i-u Boot Device (optional – shown)
3- Hot-plug Power Supply 1 and 2
4- OCP 3.0 Slot (shown covered)
5- Video (VGA) port
6- UID Indicator LED
7- Two (2) USB 3.2 Gen1 ports
8- Dedicated iLO management port
9- Embedded 1x2 network port
10- Serial port (optional)
مشخصات فنی سرور HPE ProLiant DL320 Gen11
نوع پردازنده | Intel® |
گروه پردازنده | 4th Generation Intel® Xeon® Scalable Processors |
تعداد هسته پردازنده | 8 to 32 core, depending on processor. |
حافظه پنهان پردازنده | 26.25 - 82.5 MB L3, depending on processor. |
حداکثر حافظه | 2.0 TB per socket, one socket only, when populated with 128 GB DDR5 Memory. |
تعداد اسلات حافظه | 16 DIMM slots per socket |
نوع حافظه | HPE DDR5 SmartMemory |
ویژگی های حفاظت از حافظه | HPE Fast Fault Tolerant Memory Advanced ECC Memory Online Spare Memory Mirrored Memory |
تعداد درایوهای پشتیبانی کننده | Up to 4 LFF SAS/SATA HDDs or SSDs. Up to 8+2 SFF SAS/SATA HDDs or SATA/SAS/NVMe U.2 or U.3 SDDs, depending on model. Optional embedded 2 M.2 Boot SSD. Optional RAID 1 NVMe M.2 Boot device (Internal or external accessible from rear wall with 2x NVMe M.2 incorporated). |
مدیریت زیرساخت | Included - HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download). Optional - HPE iLO Advanced, and HPE OneView Advanced. |
ویژگی های فن سیستم | Standard Fan Kit or High Performance Fan Kit, depending on model. |
نوع منبع تغذیه | HPE 500W Flex Slot Platinum Hot Plug Power Supply, HPE 800W Flex Slot Platinum Hot Plug Power Supply, HPE 1000W Flex Slot Titanium Power Supply, HPE 1600W Flex slot Platinum Hot Plug Power Supply, depending on model. |
تعداد اسلات های قابل توسعه | Maximum, 2 PCIe Gen5 & 1 OCP 3.0 PCIe Gen5, for detail descriptions please refer to the QuickSpecs. |
کنترلر شبکه | Wide range of speeds, cabling, chipsets and form factors (PCIe stand-up adapter and OCP3.0). Please refer to the QuickSpecs for network card choices. |
کنترل کننده ذخیره سازی | Included - Embedded SATA controller (AHCI or Intel SATA software RAID controller) Optional - HPE Smart Array Gen11 Storage Controller in Variety of protocols -including NVMe-, port count, array utilities, and form factors (PCIe stand-up adapter and OCP3.0). Please refer to the QuickSpecs for storage controllers selection. |
ظرفیت DIMM | 16 GB to 256 GB |
امنیت | UEFI Secure Boot and Secure Start support. Intel® Software Guard Extensions (SGX) support. Immutable Silicon Root of Trust. Optional Trusted Supply Chain, iLO Security modes, TPM, Chassis Intrusion detection and Bezel Locking kits. |
نوع درایو نوری | Optional HPE 9.5mm SATA DVD-RW Optical Drive, HPE Mobile USB DVD-RW Drive |
سرعت پردازنده | 3.6 GHz, maximum depending on processor. |
